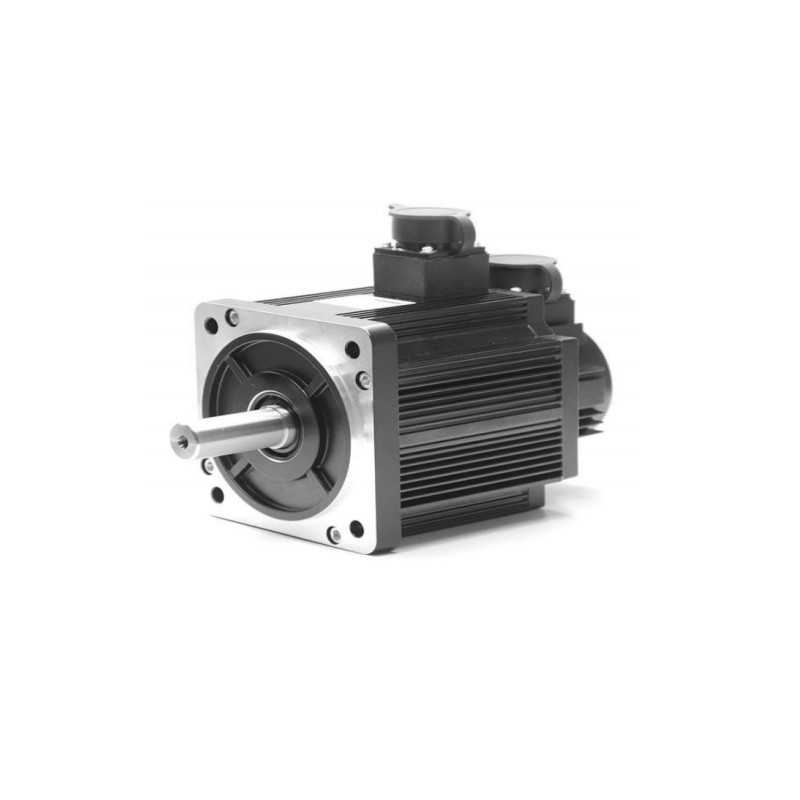

The AC permanent servo motor is a high-performance rotary actuator that enables precise motion control. As the dominant type in modern automation, it is based on a synchronous motor principle and operates within a closed-loop system. This design allows it to deliver exceptional control over position, velocity, and torque, making it the engine behind everything from industrial robots to CNC machinery.
Typical application
The AC permanent servo motor is a cornerstone of modern industry, powering a wide range of applications such as CNC machines, robotics, packaging equipment, and electric vehicles. In short, it is the preferred solution for any application demanding high reliability, a compact form factor, and superior precision, speed, and control.
Hot Tags: ac permanent servo motor, China ac permanent servo motor manufacturers, suppliers, factory, 220v Servo Motor, 5kw Servo Motor, ac servo motor, High Speed AC Servo Motor, Permanent Magnet AC Servo Motor, Servo Motor 2kw
Main Specifications
|
Category |
Specification |
|
Feedback |
2500-line incremental encoder |
|
Insulation |
Class B (130°C) |
|
Ingress Protection |
IP64 |
|
Operating Temperature |
-20°C to +50°C |
|
Operating Humidity |
≤ 90% RH, non-condensing |
|
Mechanical Durability |
10,000 hours (min) |
|
Overload Capacity |
300% of rated torque (for short duration) |
Model variants details
|
Motor Model |
200SFM-E53015 |
200SFM-E53020 |
200SFM-E70015 |
200SFM-E70020 |
200SFM-E84015 |
200SFM-E84020 |
|
Rated Power( KW ) |
8.3 |
11.1 |
11 |
14.7 |
13.2 |
17.6 |
|
Rated Cable Voltage( V ) |
380 |
380 |
380 |
380 |
380 |
380 |
|
Rated Cable Current(A) |
16 |
22 |
21 |
28 |
23 |
23 |
|
Rated Speed( rpm ) |
1500 |
2000 |
1500 |
2000 |
1500 |
2000 |
|
Rated Torque( N.m ) |
53 |
53 |
70 |
70 |
84 |
84 |
|
Peak Torque( N.m ) |
159 |
159 |
210 |
210 |
252 |
252 |
|
Line-line Resistance( Ω ) |
1.2 |
0.7 |
0.78 |
0.4 |
0.75 |
0.28 |
|
Line-line Inductance(mh) |
14.5 |
8.1 |
10.9 |
6.1 |
12.3 |
5.1 |
|
Weight( Kg ) |
46 |
46 |
52 |
52 |
59 |
59 |
|
Length(mm) |
375 |
375 |
413 |
413 |
451 |
451 |
|
Encoder line number |
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
Order and Delivery Info
|
MOQ |
10 PCS |
Certificate |
ISO9001, CE |
|
Inspection |
Sampling inspection / full inspection |
Assembly/Package |
Standard or according to demand |
|
Delivery Time |
10-15 days |
Origin |
Shanghai China |
