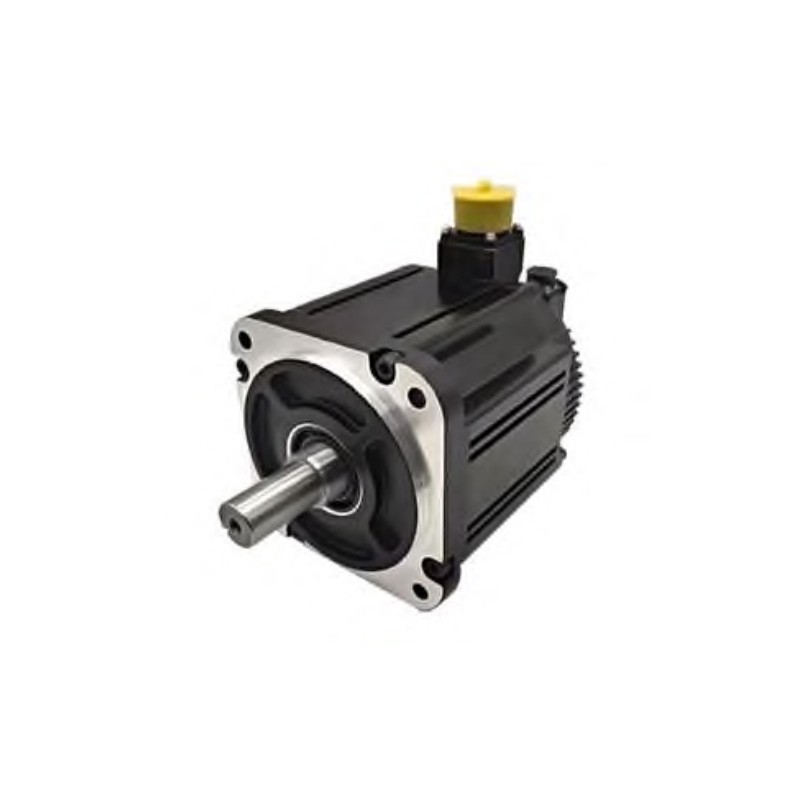

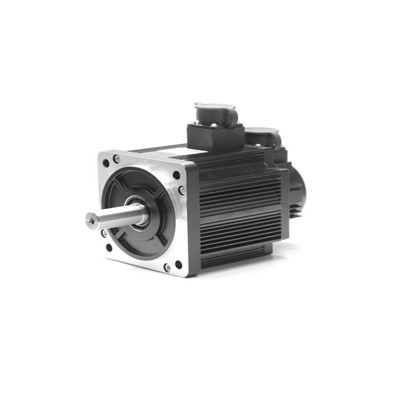

A popular member of our AC servo family, the AC servo motor 2kw offers excellent performance and accurate motion control. The AC servo motor 2kw is often built on a "permanent magnet synchronous base," and we provide a brushless design that performs well over time and requires very little maintenance. It functions as a closed-loop system. It is perfect for demanding applications in a variety of sectors because of this combination.
Typical application
Small-scale automation and robotics, semiconductor and electronics manufacturing, medical and laboratory equipment, optics, solar energy, and more all make extensive use of the 2kw AC servo motor.
Hot Tags: servo motor 2kw, China servo motor 2kw manufacturers, suppliers, factory, High Speed AC Servo Motor, AC Servo Motor With Drive, Permanent Magnet AC Servo Motor, Servo Motor 2kw, DC And AC Servo Motor, 5kw Servo Motor
Main Specifications
|
Item |
Specifications |
|
Encoder number |
17bit |
|
Safety class |
IP65 |
|
Environmental Temperature |
-20℃ ~ +40℃ . |
|
Environmental Humidity |
Below 90%RH No Frost |
|
Overload ability |
3 times |
|
Poles |
5 pole servo motor |
|
Motor Insulation |
Class F |
Model variants details
|
Motor Model |
130BST-02815 |
130BST-05415 |
130BST-08315 |
130BST-11515 |
130BST-14615 |
130BST-17815 |
|
Rated Power( KW ) |
0.45 |
0.85 |
1.3 |
1.8 |
2.3 |
2.8 |
|
Rated Voltage( V ) |
220 |
220 |
220 |
220 |
220 |
220 |
|
Rated Current( A ) |
3.7 |
6.9 |
10.7 |
15 |
12.5 |
15.5 |
|
Counter current(A) |
11 |
17 |
28 |
42 |
37.5 |
46.5 |
|
Rated Torque( N.m ) |
2.86 |
5.39 |
8.34 |
11.5 |
14.6 |
17.8 |
|
Peak torque( N.m ) |
7.15 |
14.2 |
23.3 |
28.7 |
43.8 |
53.4 |
|
Rated Speed( rpm ) |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Max Speed( rpm ) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Counter electronmotive force(V/1000r/min) |
52.5 |
50.2 |
52 |
52.2 |
76.5 |
76 |
|
Moment coefficient(N.m/A) |
0.77 |
0.78 |
0.78 |
0.76 |
0.91 |
1.14 |
|
Line-line Resistance ( Ω ) |
2.4 |
0.98 |
0.54 |
0.42 |
0.69 |
0.46 |
|
Line-line Inductance (mH) |
25 |
12.32 |
8.5 |
6.2 |
10.25 |
10 |
|
Electrical time constant |
10.41 |
12.57 |
15.74 |
14.76 |
14.85 |
21.73 |
|
Rotor inertia |
5.3x10-4 |
13.9x10-4 |
19.9x10-4 |
26x10-4 |
40.7x10-4 |
45.4x10-4 |
|
Motor Length (mm) |
135.5 |
145 |
160 |
178 |
205 |
234 |
|
Motor brake Length (mm) |
166 |
178 |
193 |
211 |
237 |
267 |
Order and Delivery Info
|
MOQ |
10 PCS |
Certificate |
ISO9001, CE |
|
Inspection |
Sampling inspection / full inspection |
Assembly/Package |
Standard or according to demand |
|
Delivery Time |
10-15 days |
Origin |
Shanghai China |
